quick overview :

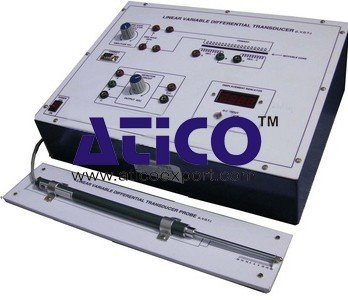

Features: The instrumentation trainer consists of the following

• One board having the following built in parts.

1. ± 12V D.C. at 50mA I.C.regulated Power Supply for Sine wave Oscillator.
2. 4KHz fixed Sine wave Oscillator having variable amplitude 0–10V (P–P).
3. Digital Panel meter 3½ digits range 200mV.
4. Detector circuit with output adjustment pot.
5. 9 pin male connector.

• Transducer : Linear variable differential transducer (L.V.D.T.).
• Range : ± 20 mm. (Accuracy ± 1 mm, ± 1 Digit)
• Moving action : 6 wires,spring loaded type axial.
• Mains ON/OFF switch and fuse.
• Adequate no.of patch cords stackable 4 mm spring loaded plug length ½ metre.
• Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
• Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
• Weight : 4 Kg. (Approx)
• Dimension : W 412 x H 150 x D 310
